HomePRODUCTCreative LED screen

Round display screen

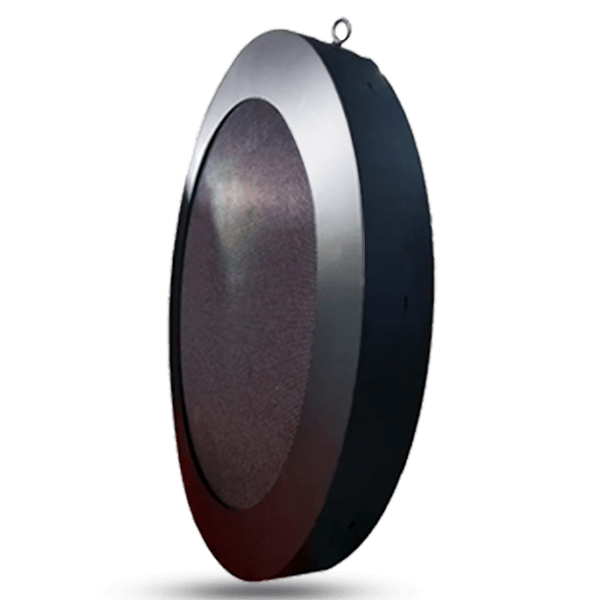

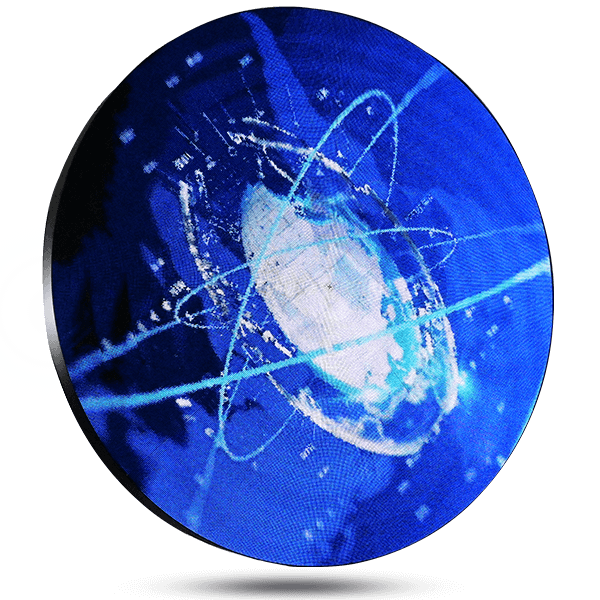

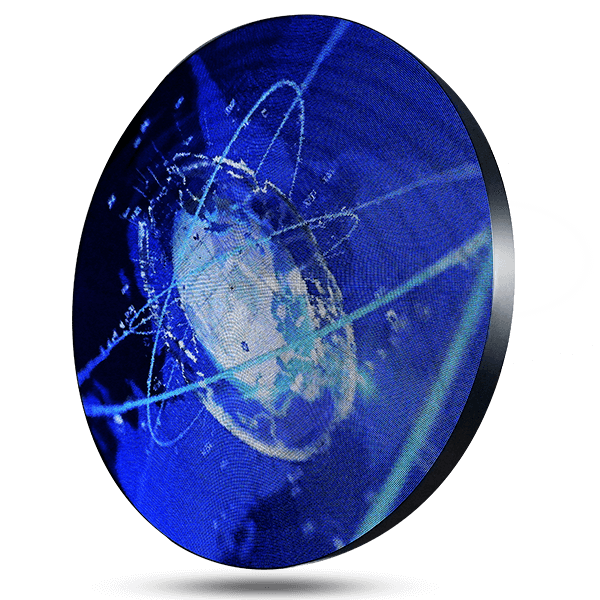

ABCHIP round LED display, which is composed of a bracket and a round cake LED display component mounted on the bracket, simple structure, low production cost; The LED display component is in the shape of a round cake, and one end is bent, which can better meet the needs of users, with a certain 3D display effect.

Request a solution
mxh3
mxh3
mxh3
mxh3


Product Parameters

Product model P2/P2.5/P3 P2/P2.5/P3 P2/P2.5/P3 P2/P2.5/P3 P2/P2.5/P3
Diameter 0.5m 0.8m 1m 1.2m 1.5m
Pitch 2mm/2.5mm/3mm 2mm/2.5mm/3mm 2mm/2.5mm/3mm 2mm/2.5mm/3mm 2mm/2.5mm/3mm
LED type SMD2020 SMD2020 SMD2020 SMD2020 SMD2020
Brightness ≥800CD ≥800CD ≥800CD ≥800CD ≥800CD
Display colors 68.7 billion 68.7 billion 68.7 billion 68.7 billion 68.7 billion
Protection degree IP31 IP31 IP31 IP31 IP31
Pixel configuration 1R1G1B 1R1G1B 1R1G1B 1R1G1B 1R1G1B
Control mode Video Sync Video Sync Video Sync Video Sync Video Sync
Rate ≥3840HZ ≥3840HZ ≥3840HZ ≥3840HZ ≥3840HZ
Communication cats(≤120M)/Fiber optical(10000m) cats(≤120M)/Fiber optical(10000m) cats(≤120M)/Fiber optical(10000m) cats(≤120M)/Fiber optical(10000m) cats(≤120M)/Fiber optical(10000m)
Drive method Constant driving/Statuc latch Constant driving/Statuc latch Constant driving/Statuc latch Constant driving/Statuc latch Constant driving/Statuc latch
Viewing angle(H/V) H:160°V:160° H:160°V:160° H:160°V:160° H:160°V:160° H:160°V:160°
The optimal viewing distance 2-50m 2-50m 2-50m 2-50m 2-50m
Display mode (Max)1024×768/1280×1024 (Max)1024×768/1280×1024 (Max)1024×768/1280×1024 (Max)1024×768/1280×1024 (Max)1024×768/1280×1024
Max consumption 800W/㎡ 800W/㎡ 800W/㎡ 800W/㎡ 800W/㎡
Average power 300W/㎡ 300W/㎡ 300W/㎡ 300W/㎡ 300W/㎡
