HomePRODUCTrental LED screen

500*1000 rental series(Indoor)

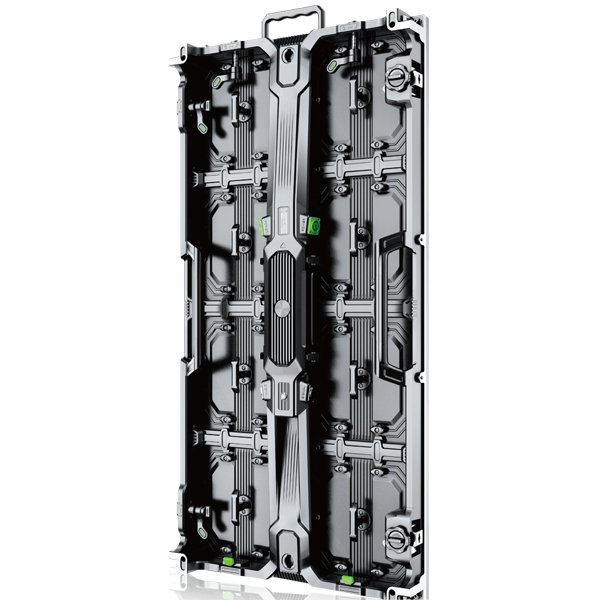

ABCHIP brand new rental LED display products is featured with simple structure, lightweight cabinet, fast assembly, and high reliability.

Request a solution
mxh3
mxh3
mxh3


Product Parameters

2.604mm 2.976mm 3.91mm 4.81mm
Density 147456dots/㎡ 112896dots/㎡ 65536dot/㎡ 43264dot/㎡
Module size 250mm*250mm(W*H) 250mm*250mm(W*H) 250mm*250mm(W*H) 250mm*250mm(W*H)
Module resolution(W*H) 96*96 84*84 64*64 52*52
Cabinet size 500*1000*75mm 500*1000*75mm 500*1000*75mm 500*1000*75mm
Cabinet resolution 192*384 168*336 128*256 104*208
Module 2*4=8 2*4=8 2*4=8 2*4=8
Driving method 1/32scan 1/28scan 1/16scan 1/13scan
LED package SMD1515 SMD2020 SMD2020 SMD2020
Viewing angle H:160°V:160° H:160°V:160° H:160°V:160° H:160°V:160°
Brightness ≥800CD/㎡ ≥800CD/㎡ ≥800CD/㎡ ≥800CD/㎡
The optimal viewing distance 3-50m 3-50m 3-50m 4-50m
Display colors 68.7(Million) 68.7(Million) 68.7(Million) 68.7(Million)
Protection degree IP31 IP31 IP31 IP31
Pixel configuration 1R1G1B 1R1G1B 1R1G1B 1R1G1B
Max consumption 800W/㎡ 800W/㎡ 800W/㎡ 800W/㎡
Average power 300W/㎡ 300W/㎡ 300W/㎡ 300W/㎡ 300W/㎡
Control mode nova nova nova nova
Rate ≥3840Hz ≥3840Hz ≥3840Hz ≥3840Hz
Communication Cat(≤120M)/Fiber optical(10000m) Cat(≤120M)/Fiber optical(10000m) Cat(≤120M)/Fiber optical(10000m) Cat(≤120M)/Fiber optical(10000m)
