HomePRODUCTrental LED screen

500*500 rental series(Indoor)

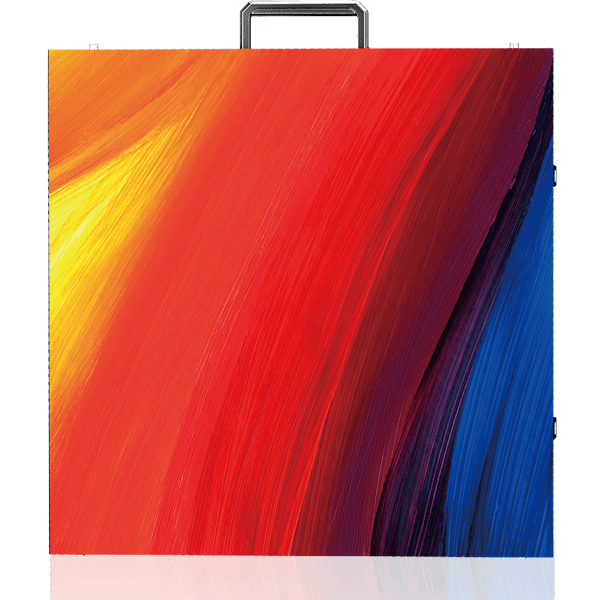

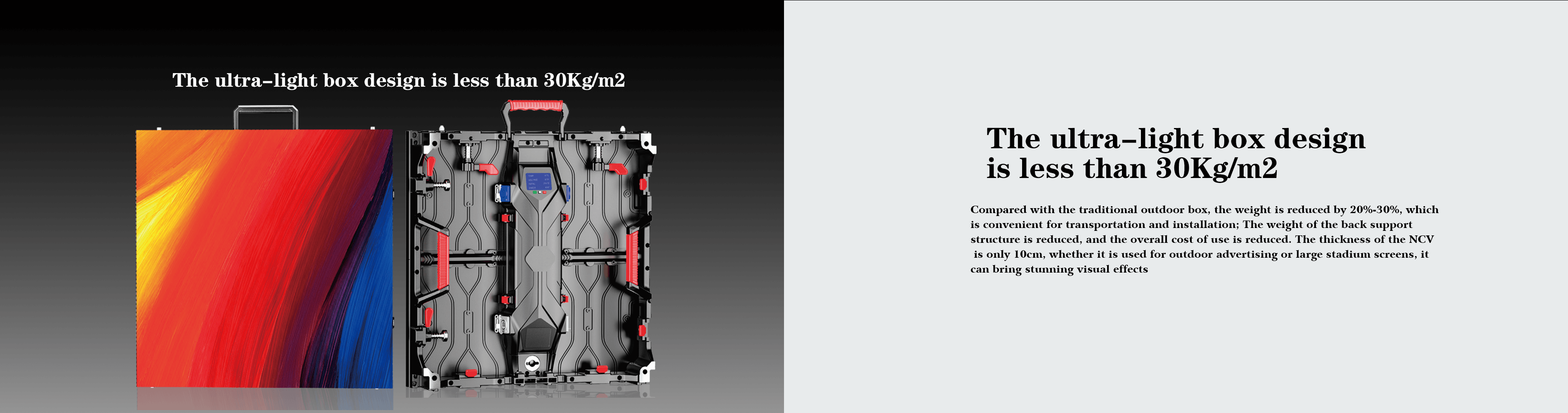

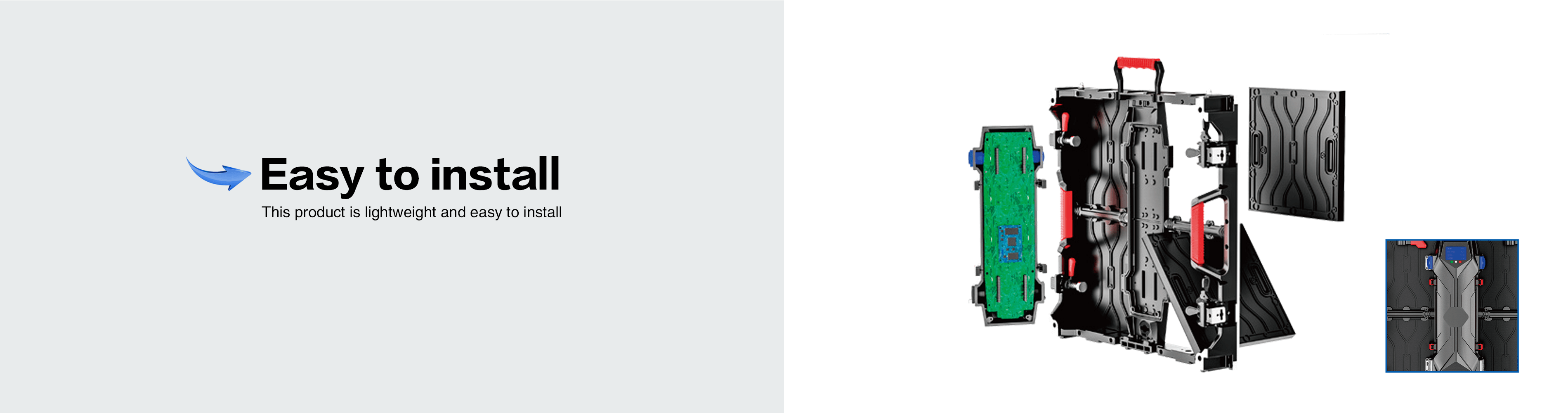

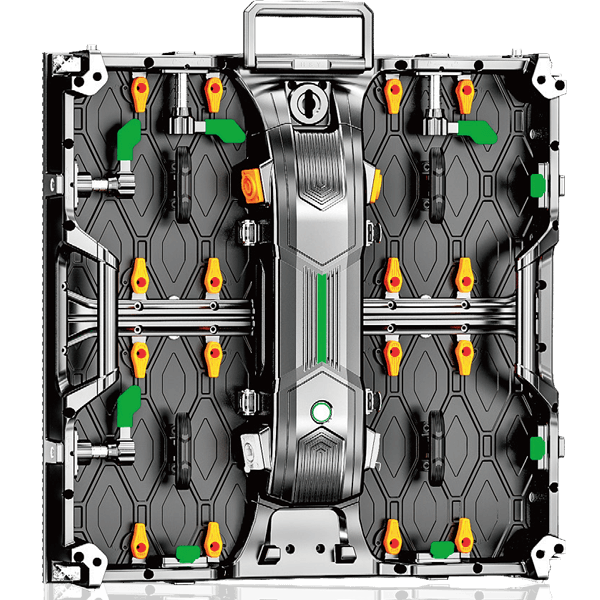

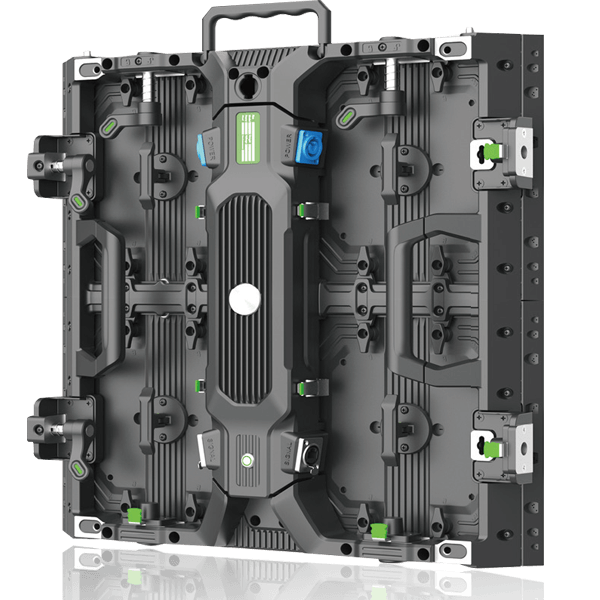

ABCHIP brand new rental LED display products is featured with simple structure, lightweight cabinet, fast assembly, and high reliability.

Request a solution
mxh3
mxh3
mxh3
mxh3


Product Parameters

Pixel Pitch ( mm ) 2.604mm 2.976mm 3.91mm 4.81mm
Density 147456dots/㎡ 112896dots/㎡ 655536dots/㎡ 43264dots/㎡
Module size 250mm*250mm(W*H) 250mm*250mm(W*H) 250mm*250mm(W*H) 250mm*250mm(W*H)
Module resolution(W*H) 96*96(W*H) 84*84(W*H) 64*64(W*H) 52*52(W*H)
Cabinet size 500*500*75mm 500*500*75mm 500*500*75mm 500*500*75mm
Cabinet resolution 192*192 168*168 128*128 104*104
Module 2*2=4 2*2=4 2*2=4 2*2=4
Driving method 1/32scan 1/28scan 1/16scan 1/13scan
LED package SMD1515 SMD2020 SMD2020 SMD2020
Viewing angle H:160°V:160° H:160°V:160° H:160°V:160° H:160°V:160°
Brightness ≥800CD/㎡ ≥800CD/㎡ ≥800CD/㎡ ≥800CD/㎡
The optimal viewing distance 3-50m 3-50m 3-50m 4-50m
Display colors 68.7(million) 68.7(million) 68.7(million) 68.7(million)
Protection degree IP31 IP31 IP31 IP31
Pixel configuration 1R1G1B 1R1G1B 1R1G1B 1R1G1B
Max consumption 800W/㎡ 800W/㎡ 800W/㎡ 800W/㎡
Average power 300W/㎡ 300W/㎡ 300W/㎡ 300W/㎡
Controlmode nova nova nova nova
Rate ≥3840Hz ≥3840Hz ≥3840Hz ≥3840Hz
Communication Cats(≤120M)/Fiber optical(10000m) Cats(≤120M)/Fiber optical(10000m) Cats(≤120M)/Fiber optical(10000m) Cats(≤120M)/Fiber optical(10000m)
